EventMobi's Onsite App offers a Kiosk mode where attendees can self-check-in and print their event badge. In addition to helping with check-in, the Kiosk mode can help you promote your organization or even your top sponsor by customizing the background and logo that displays during the check-in process.
Adding a Kiosk Wallpaper for Check-In

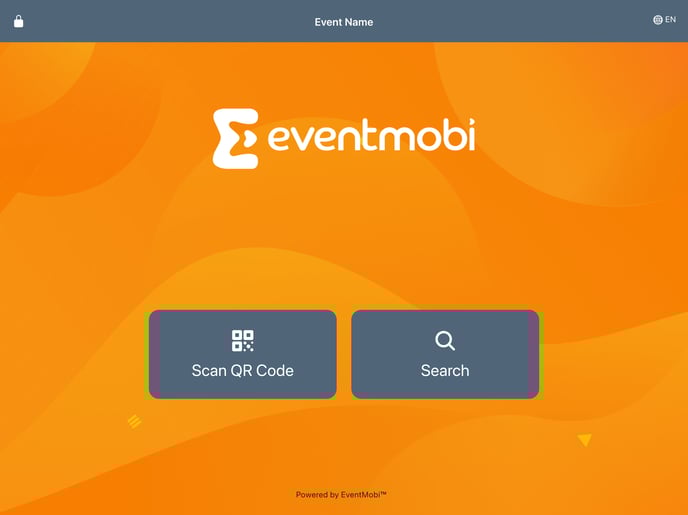

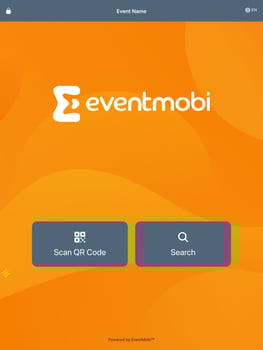

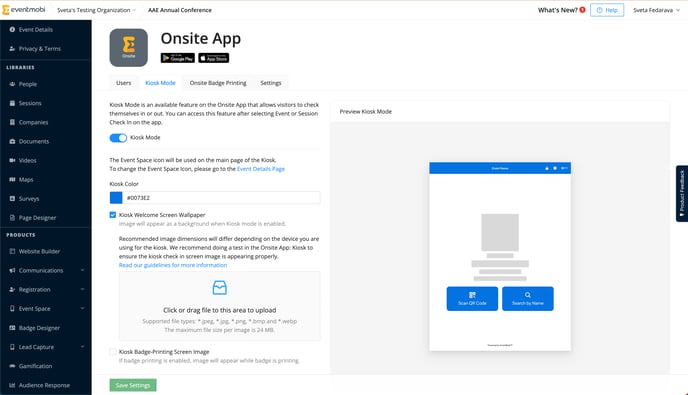

To customize the wallpaper for EventMobi's Onsite App in Kiosk mode, visit the Onsite App area of the Experience Manager and toggle the Kiosk Mode on and select the checkbox for Kiosk Welcome Screen Wallpaper.
Before uploading the Kiosk wallpaper image, make sure that it matches the measurements of the device you'll be using it on. Listed below, you will find a breakdown of the sizing for various iPad models.
If you are unsure of which device you will be using at the event, then we recommend using images in 2732 x 2732 as a catch-all.
| iPad Model | Screen Size (inches) | Screen Resolution | Wallpaper Size (Portrait) | Wallpaper Size (Landscape) |
| iPad (10th Gen) | 10.9 | 2360 x 1640 | 2360 x 1640 | 1640 x 2360 |
| iPad (9th Gen) | 10.2 | 2160 x 1620 | 2160 x 1620 | 1620 x 2160 |
| iPad Air (5th Gen) | 10.9 | 2360 x 1640 | 2360 x 1640 | 1640 x 2360 |
| iPad Air (4th Gen) | 10.9 | 2360 x 1640 | 2360 x 1640 | 1640 x 2360 |
| iPad Mini (6th Gen) | 8.3 |
2266 x 1488 |
2266 x 1488 | 1488 x 2266 |
| iPad Mini (5th Gen) | 7.9 | 2048 x 1536 | 2048 x 1536 | 1536 x 2048 |
| iPad Pro (6th Gen) | 12.9 | 2732 x 2048 | 2732 x 2048 | 2048 x 2732 |
| iPad Pro (5th Gen) | 12.9 | 2732 x 2048 | 2732 x 2048 | 2048 x 2732 |
| iPad Pro (4th Gen - 12.9") | 12.9 | 2732 x 2048 | 2732 x 2048 | 2048 x 2732 |
| iPad Pro (4th Gen. - 11") | 11 | 2388 x 1668 | 2388 x 1668 | 1668 x 2388 |
| iPad Pro (3rd Gen) | 11 | 2388 x 1668 | 2388 x 1668 | 1668 x 2388 |
| iPad Pro (2nd Gen) | 11 | 2388 x 1668 | 2388 x 1668 | 1668 x 2388 |
| iPad Pro (1st Gen) | 11 | 2388 x 1668 | 2388 x 1668 | 1668 x 2388 |
Note: Some parts of the image may not be visible due to the placement of buttons in the Kiosk mode.
Adding a Kiosk Badge Printing Screen
In the Onsite App area of the Experience Manager, you will find a checkbox to enable the Kiosk Badge-Printing Screen Image.
The size of this image should be a ratio of 4:3, and for best results, we recommend a larger scale image that is 960x720px.
Unlike Check-In, the Badge Printing Screen for Kiosk mode doesn't include any buttons, so you won't have to factor these into your image designs.
Note: The Badge Printing Screen image will display for approximately 15 seconds, so it is best practice to keep the text on your image to a minimum.
 |
iPad Model | Recommended Image Size |
| iPad Pro 12.9" | 960 x 720 | |
| iPad Pro 11" | 770 x 580 | |
| iPad Mini | 684 x 519 |
Kiosk Wallpaper Templates for Canva
Click on any of the following templates to access them in Canva where you can edit or download them to use for your event.
 |
 |
 |
